Hermetic EMI/RFI Filters

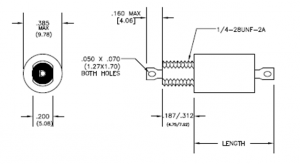

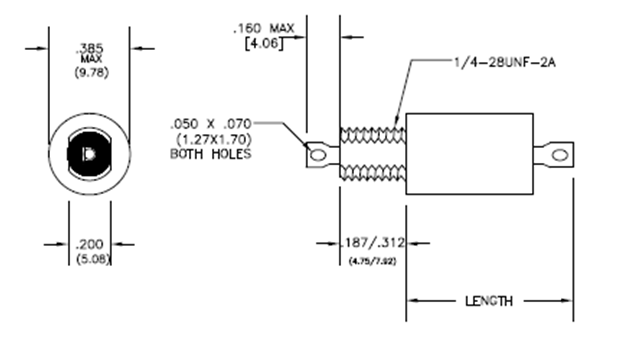

710 - C-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V
Max Capacitance (µF)	10	8	6	4.8	3	1.5
30 kHz	30	29	26	25	21	15
150 kHz	45	43	41	39	35	28
300 kHz	51	49	47	45	41	35
1 MHz	61	59	57	55	51	45
10 MHz	>70	>70	>70	>70	69	63
100 MHz	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
710-105B	13	27	33	43	62	>70	>70
710-133J				7	26	45	65
710-405B	20	34	39	50	60	>70	>70
711-145B	15	28	33	44	60	>70	>70
712-255B	21	34	39	50	60	>70	>70
713-155A	15	28	34	40	52	>70	>70
713-605A	28	42	48	58	>70	>70	>70
714-245B		11	18	33	70	>70	>70
714-254C	21	34	40	50	>70	>70	>70
715-205B	20	33	39	48	>70	>70	>70

711 - L1-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V
Max Capacitance (µF)	7	5	4	3.2	2	0.80
30 kHz	30	27	25	23	20	11
150 kHz	44	41	39	37	33	25
300 kHz	50	47	45	43	39	25
1 MHz	57	55	55	53	48	30
10 MHz	>70	>70	>70	>70	>70	50
100 MHz	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
711-145B	15	28	33	44	60	>70	>70

712 - L2-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V
Max Capacitance (µF)	7	5	4	3.2	2	0.80
30 kHz	30	27	25	23	20	11
150 kHz	44	41	39	37	33	25
300 kHz	50	47	45	43	39	30
1 MHz	57	55	55	53	48	41
10 MHz	>70	>70	>70	>70	>70	50
100 MHz	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
712-255B	21	34	39	50	60	>70	>70

713 - PI-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V
Max Capacitance (µF)	7	5	4	3.2	2	0.80
30 kHz	30	27	25	23	20	11
150 kHz	44	41	39	37	33	25
300 kHz	50	47	45	43	39	30
1 MHz	57	55	55	53	48	41
10 MHz	>70	>70	>70	>70	>70	50
100 MHz	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
713-155A	15	28	34	40	52	>70	>70
713-605A	28	42	48	58	>70	>70	>70

714 - T-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V
Max Capacitance (µF)	7	5	4	3.2	2	0.80
30 kHz	30	27	25	23	20	11
150 kHz	44	41	39	37	33	25
300 kHz	50	47	45	43	39	30
1 MHz	57	55	55	53	48	41
10 MHz	>70	>70	>70	>70	69	50
100 MHz	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
714-245B		11	18	33	70	>70	>70
714-254C	21	34	40	50	>70	>70	>70

715 - TT-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V
Max Capacitance (µF)	7	5	4	3.2	2	0.80
30 kHz	30	27	25	23	20	11
150 kHz	44	41	39	37	33	25
300 kHz	50	47	45	43	39	30
1 MHz	57	55	55	53	48	41
10 MHz	>70	>70	>70	>70	69	50
100 MHz	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
715-205B	20	33	39	48	>70	>70	>70

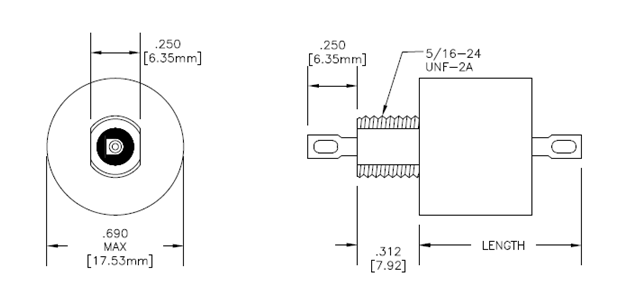

730 - C-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V	1000V
Max Capacitance (µF)	35	30	24	18	12	11	4
30 kHz	44	43	41	38	34	33	24
150 kHz	58	56	54	52	49	48	38
300 kHz	64	62	60	58	54	53	44
1 MHz	>70	>70	70	68	65	64	54
10 MHz	>70	>70	>70	>70	69	>70	>70
100 MHz	>70	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
730-605B	29	42	49	58	>70	>70	>70

731 - L1-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V	1000V
Max Capacitance (µF)	24	20	15	12	8	7	2.5
30 kHz	41	39	37	34	31	30	21
150 kHz	54	53	51	49	45	44	35
300 kHz	60	59	57	54	51	50	41
1 MHz	70	69	67	65	61	60	51
10 MHz	>70	>70	>70	>70	>70	>70	70
100 MHz	>70	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
731-254C		15	21	31	50	70	>70
731-754J	11	25	30	41	61	>70	>70

732 - L2-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V	1000V
Max Capacitance (µF)	24	20	15	12	8	7	2.5
30 kHz	41	39	37	24	31	30	21
150 kHz	54	53	51	49	45	44	35
300 kHz	60	59	57	54	51	50	41
1 MHz	70	69	67	65	61	60	51
10 MHz	>70	>70	>70	>70	>70	>70	70
100 MHz	>70	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
732-364E	6	18	24	35	55	>70	>70

733 - PI-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V	1000V
Max Capacitance (µF)	24	20	15	12	8	7	2.5
30 kHz	41	39	37	35	31	30	21
150 kHz	54	53	51	48	45	44	35
300 kHz	60	59	57	54	51	50	41
1 MHz	67	66	65	63	60	59	51
10 MHz	>70	>70	>70	>70	69	>70	>70
100 MHz	>70	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
733-285B	22	36	42	52	>70	>70	>70

734 - T-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V	1000V
Max Capacitance (µF)	24	20	15	12	8	7	2.5
30 kHz	41	39	37	34	31	30	21
150 kHz	54	53	51	49	45	44	35
300 kHz	60	59	57	54	51	50	41
1 MHz	70	69	67	65	61	60	51
10 MHz	>70	>70	>70	>70	69	>70	70
100 MHz	>70	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
734-154E		11	17	27	47	65	>70

735 - TT-Filter

Part Detail

Standard Catalog Dimensions

Max Capacitance

Common Insertion Loss

Part Detail

Standard Catalog Dimensions

Max Capacitance

Rated Voltage	50V	100V	200V	300V	400V	500V	1000V
Max Capacitance (µF)	24	20	15	12	8	7	2.5
30 kHz	41	39	37	35	31	30	21
150 kHz	54	53	51	48	45	44	35
300 kHz	60	59	57	54	51	50	41
1 MHz	67	66	65	63	60	59	51
10 MHz	>70	>70	>70	>70	69	>70	>70
100 MHz	>70	>70	>70	>70	>70	>70	>70
1 GHz	>70	>70	>70	>70	>70	>70	>70

Common Insertion Loss

Part Number	30 kHz	150 kHz	300 kHz	1 MHz	10 MHz	100 MHz	1 GHz
735-254E	3	15	21	31	47	>70	>70
